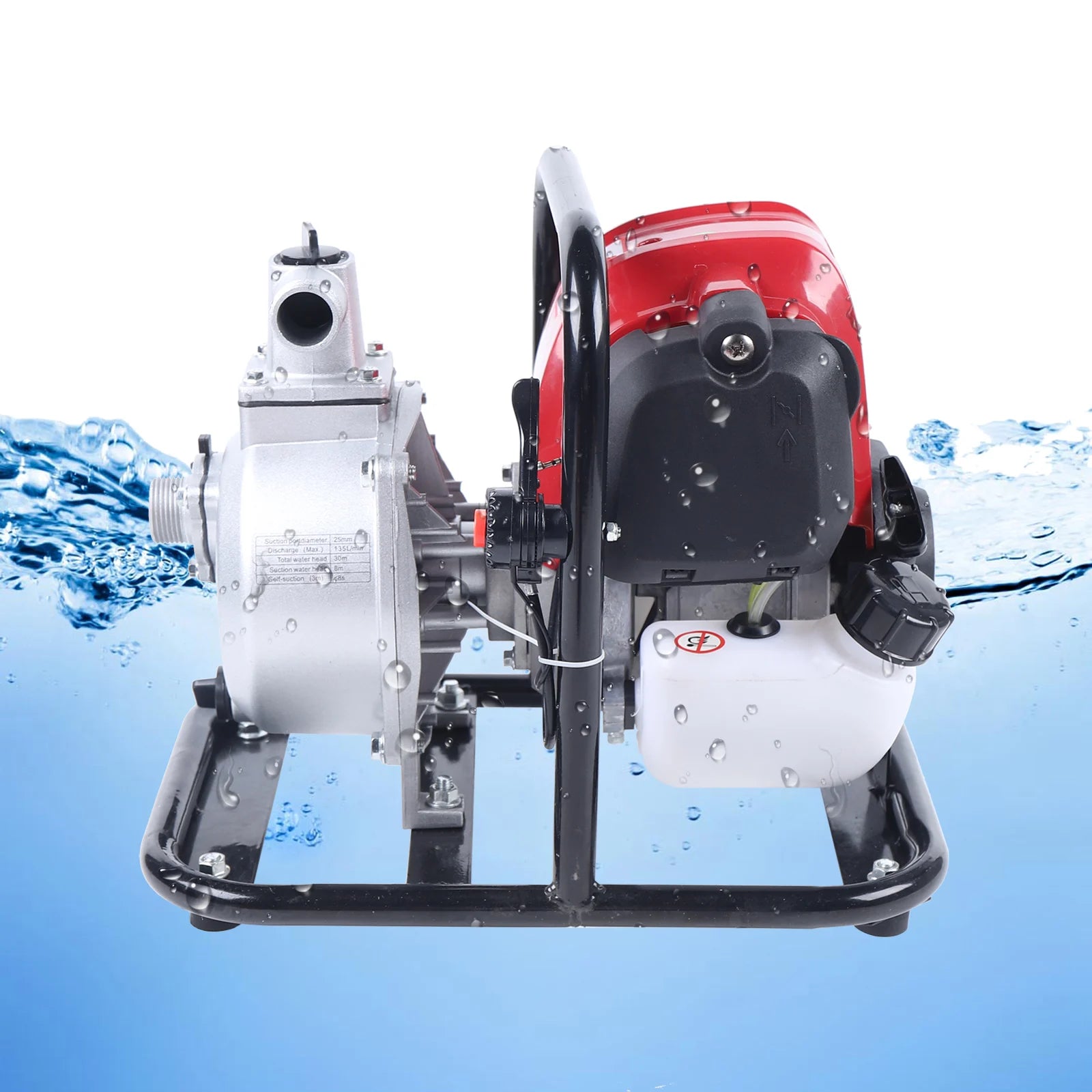

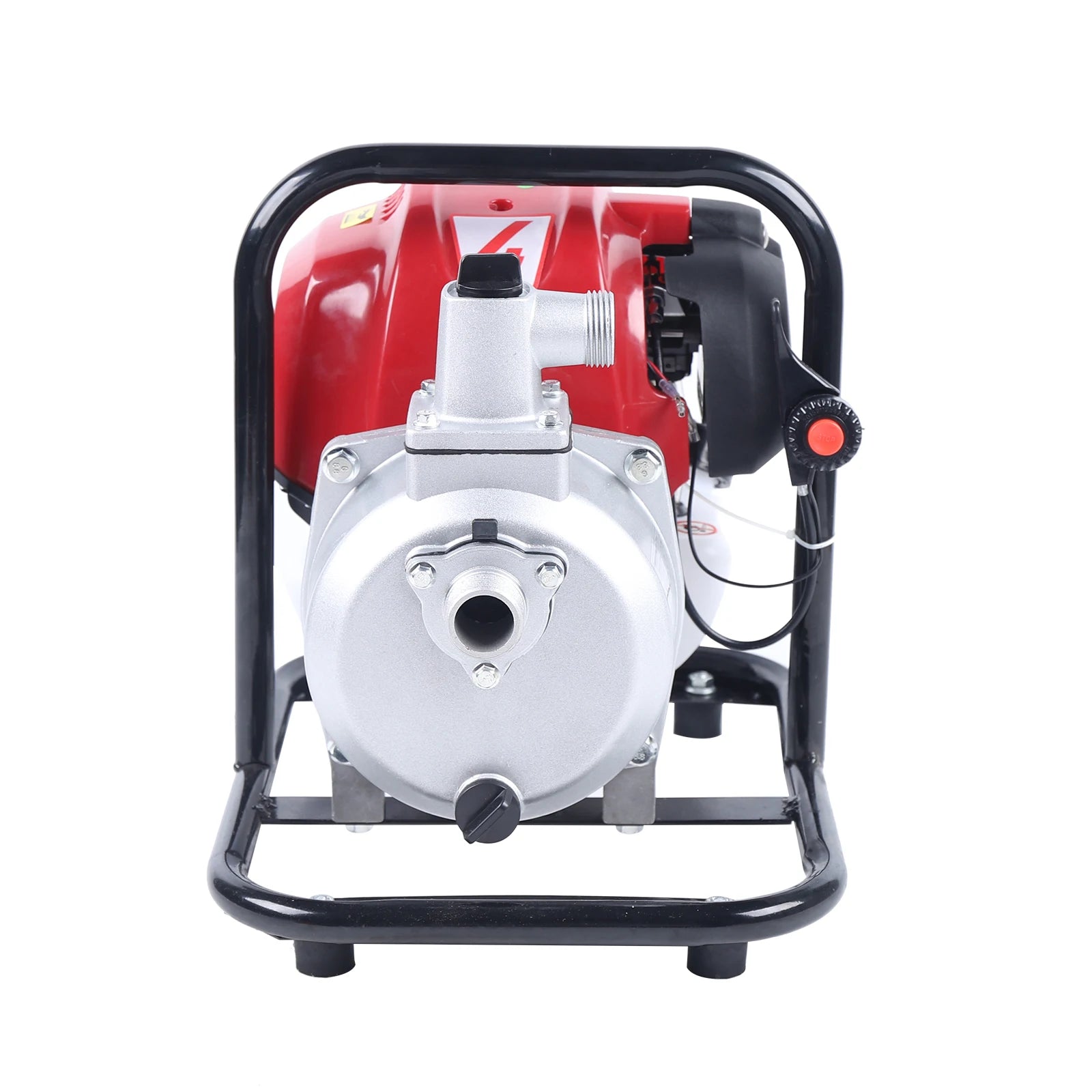

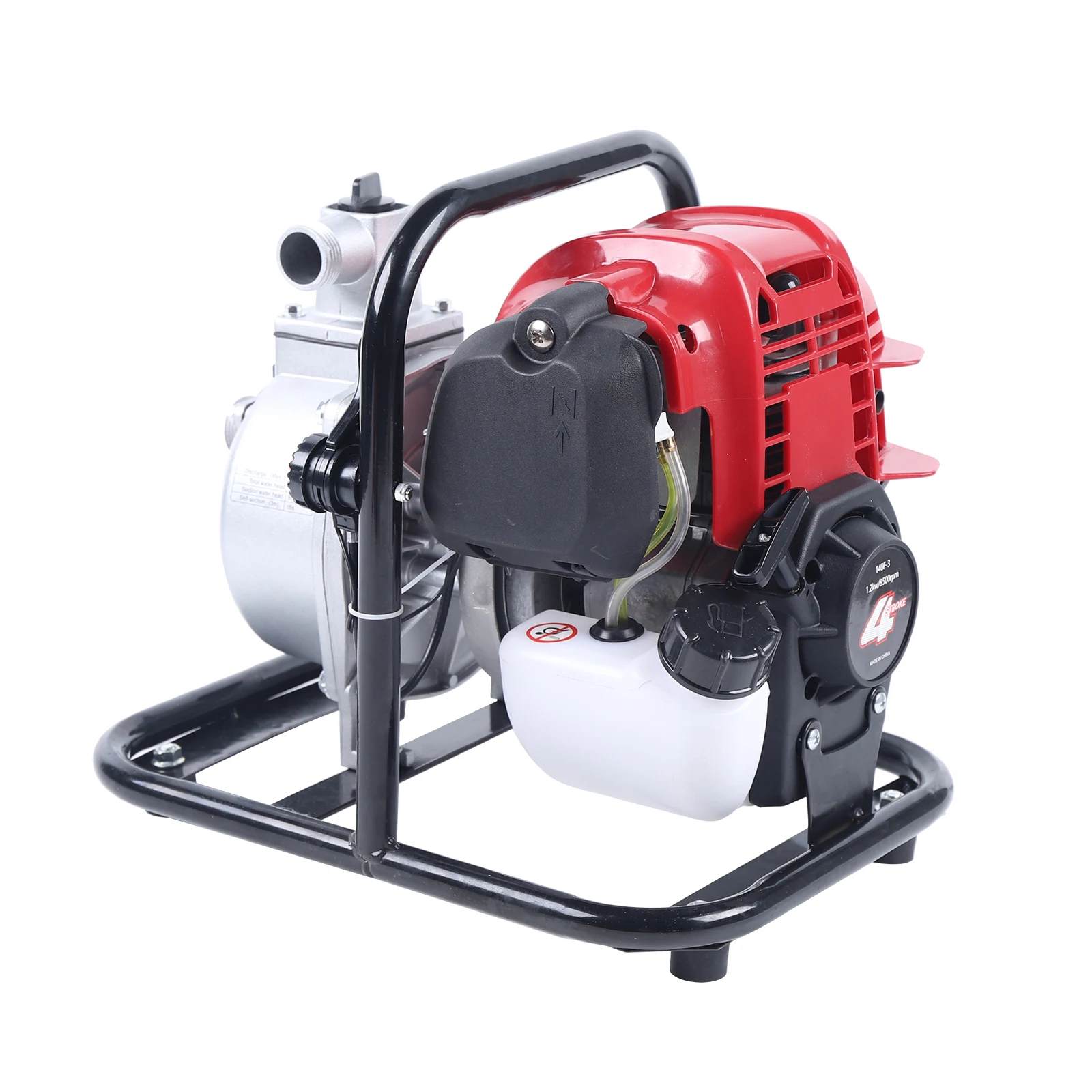

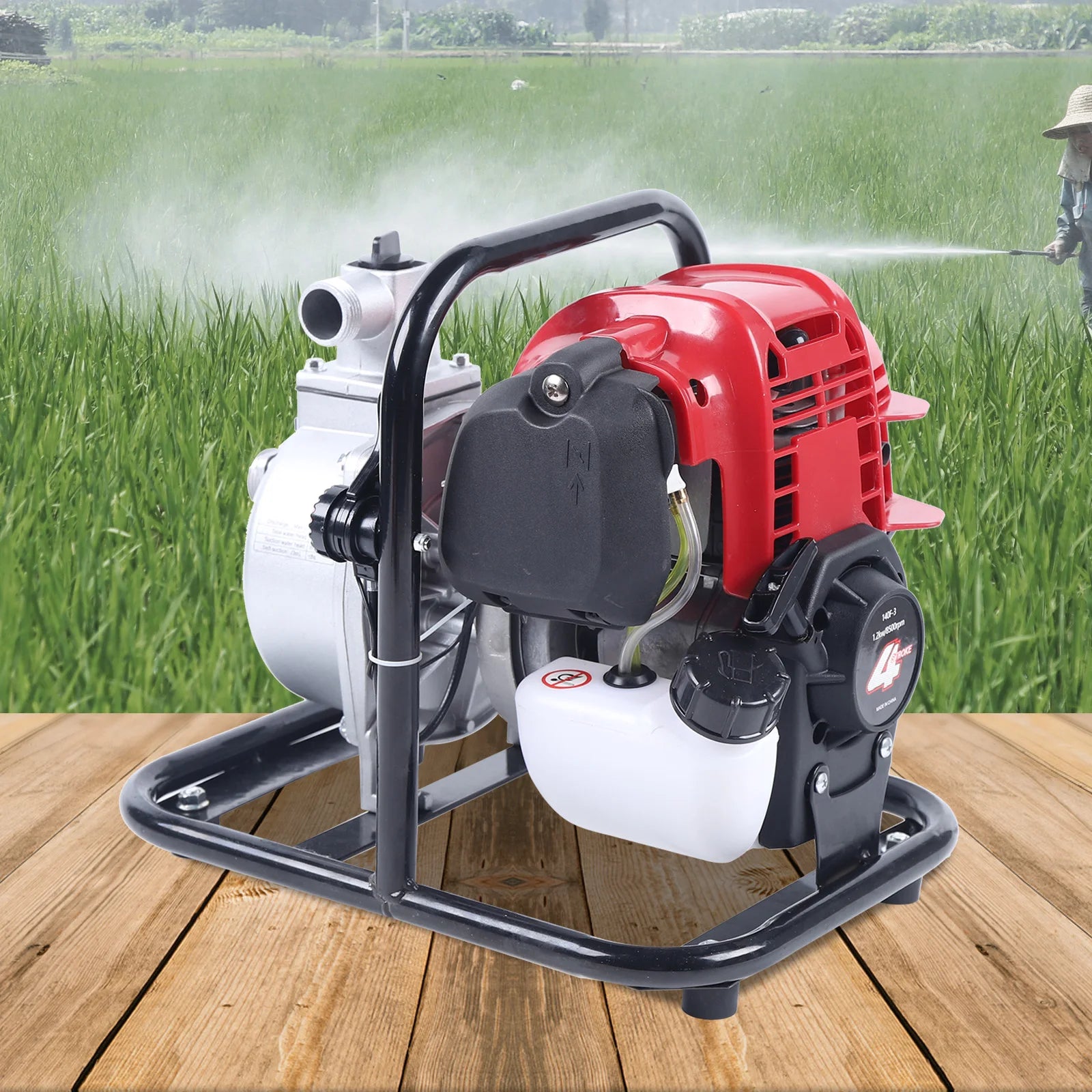

WP 10-140F portable four-stroke gasoline engine water pump pump is suitable for garden lawn watering, field pumping, drainage operations, clothing crops, green seedlings, irrigation and fertilization, etc.

Product parameters

Engine type: single-cylinder, air-cooled, four-stroke gasoline engine.
Engine displacement: 38cc
Maximum power and speed: 1.2kw, 8500r/min
Fuel tank volume: 650ml
Engine oil tank volume: 80ml
Maximum suction range: 7m
Maximum lift: 30m
Suitable water pipe size:
Water pump inlet: 1in (25mm)
Pump outlet: 1In (25mm)
Flow rate: 8000L/hour
Gross/net weight: 10kg/8.2kg
Packing size: 38x35x30cm/14.96*11.81*13.78in
Product size: 36*28*32cm/14.17*11.02*12.60in
Start mode: pull start

Features

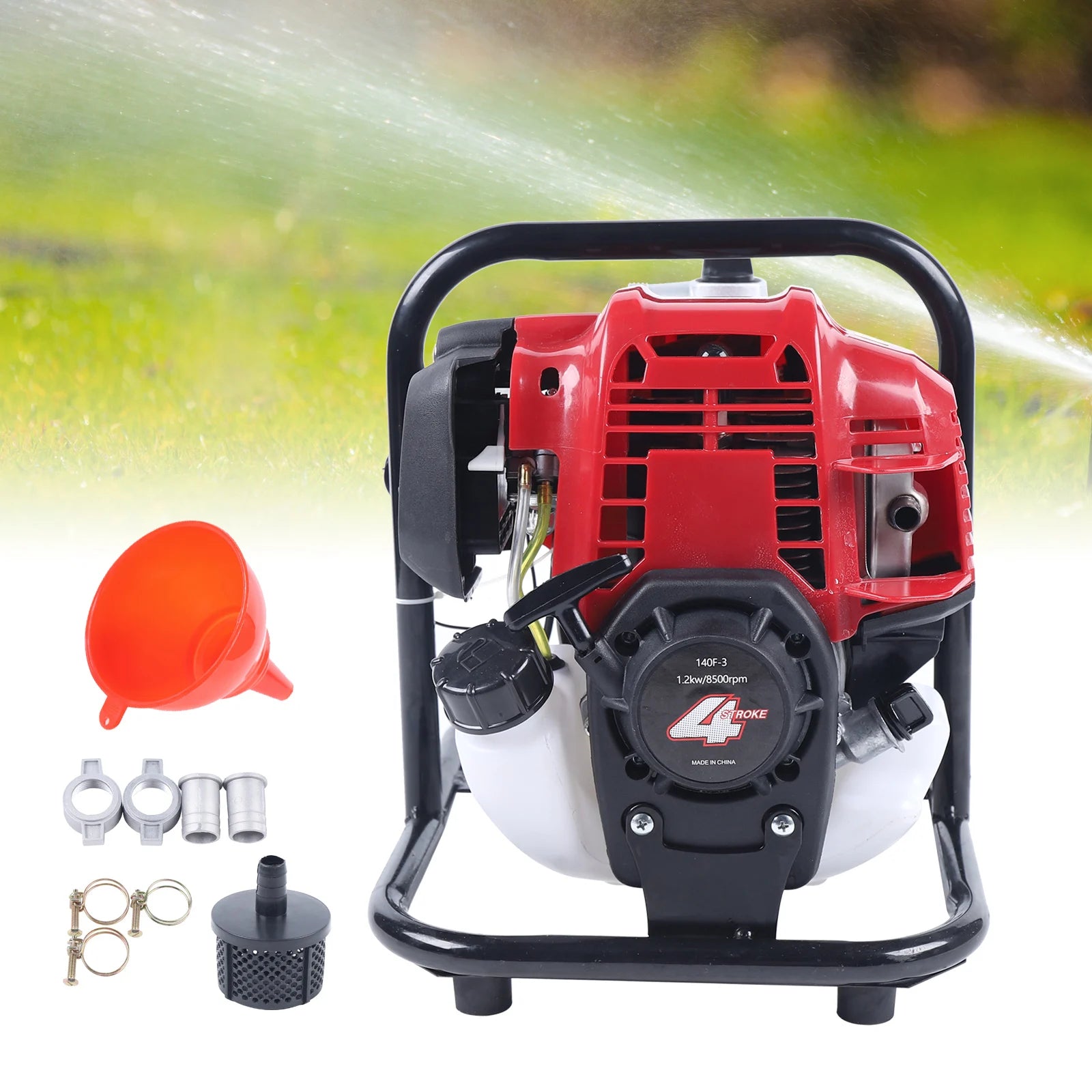

1. Equipped with four-stroke 140F-3 new power, super easy to start
2. Low fuel consumption, stable performance, long service life and low failure rate
3. Small size, light weight, convenient transition and simple operation
4. Low noise, low emissions and no pollution
5. High speed, parallel conveying>100M

Use and maintenance

1. First use: Choose genuine four-stroke gasoline engine oil and add it to the engine oil tank, about 80ml. Replace it every 100 working hours in the future.
2. Fill the fuel tank and engine oil tank with gasoline and engine oil respectively. Turn on the oil circuit switch,

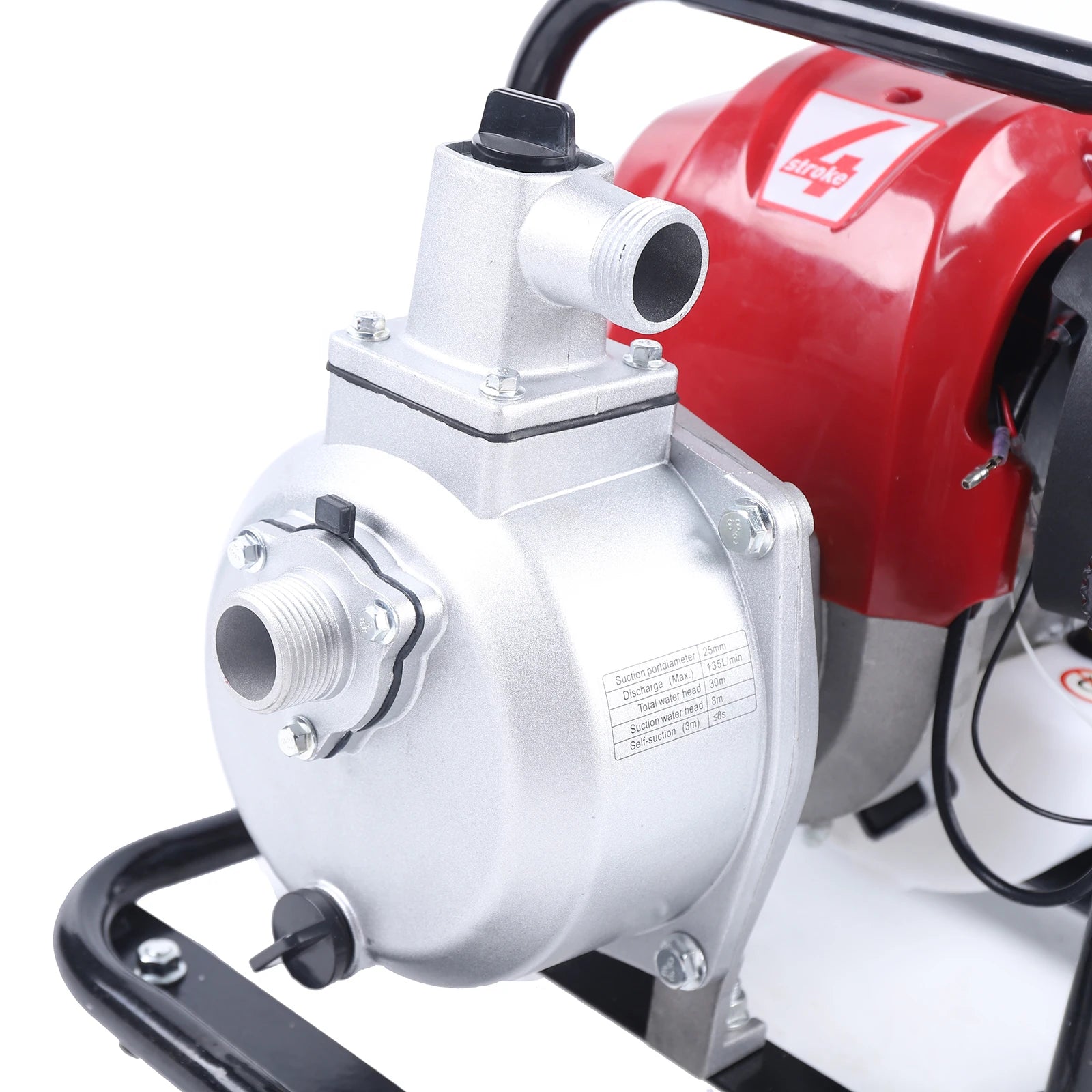

3. Open the water filling cover above the water pump. Fill up the water diversion, use the card link to connect the water inlet pipe (note that all connections of the water inlet pipe cannot leak. Air leakage will cause the water to be unable to absorb).
4. Close the damper and pull the starter. After starting, open the throttle and increase the throttle to start working.
(If there are signs of starting but failed to start, please open the damper and continue to pull the starter)
5. Good use and maintenance habits. It will make your machine work more efficiently.
