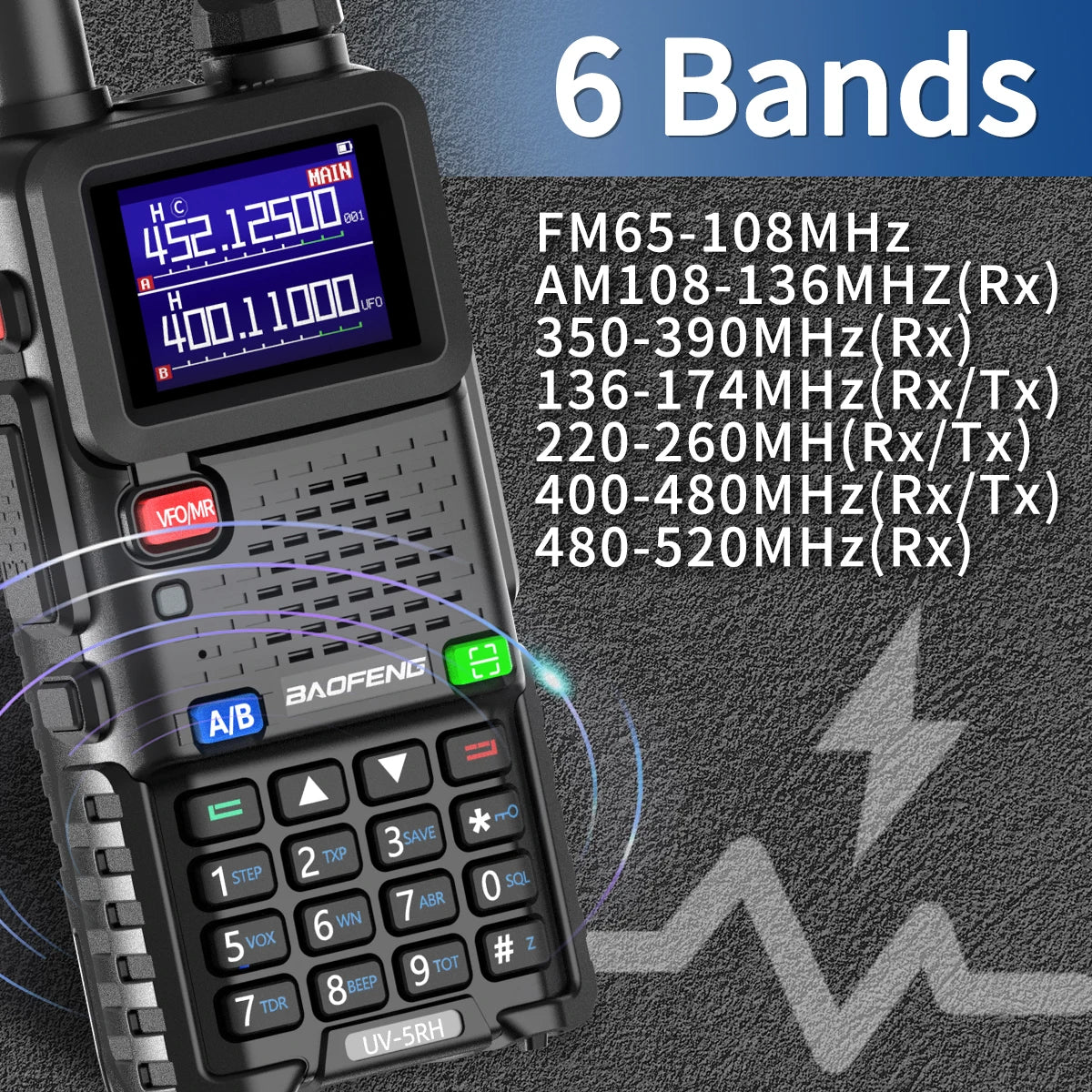

68-108 MHz (Only RX)
350-370 MHz (Only RX)

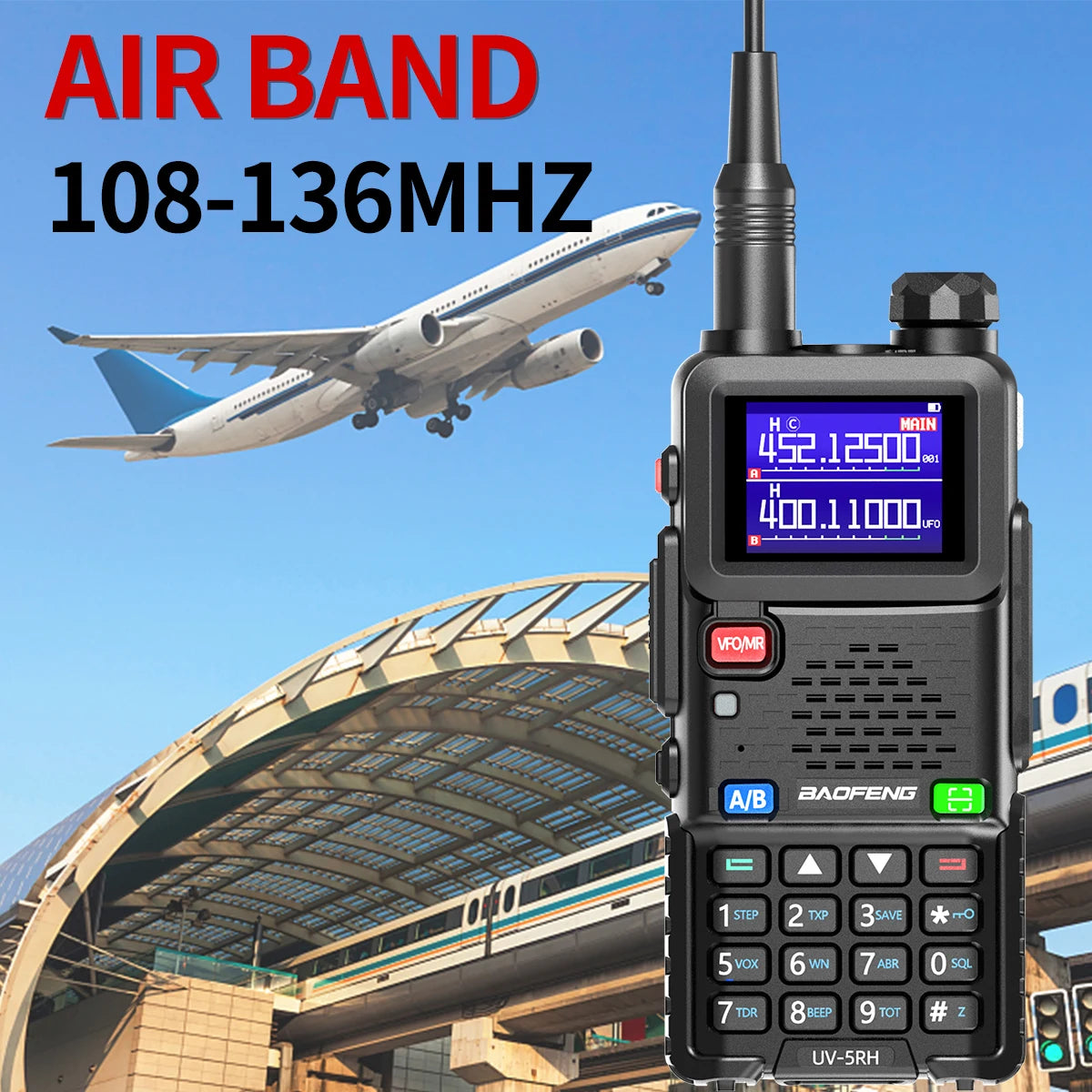

108-136 MHz (Air frequency receiving)
136-174 MHz (TX/RX)
220-260 MHz (TX/RX)
400-480 MHz (TX/RX)

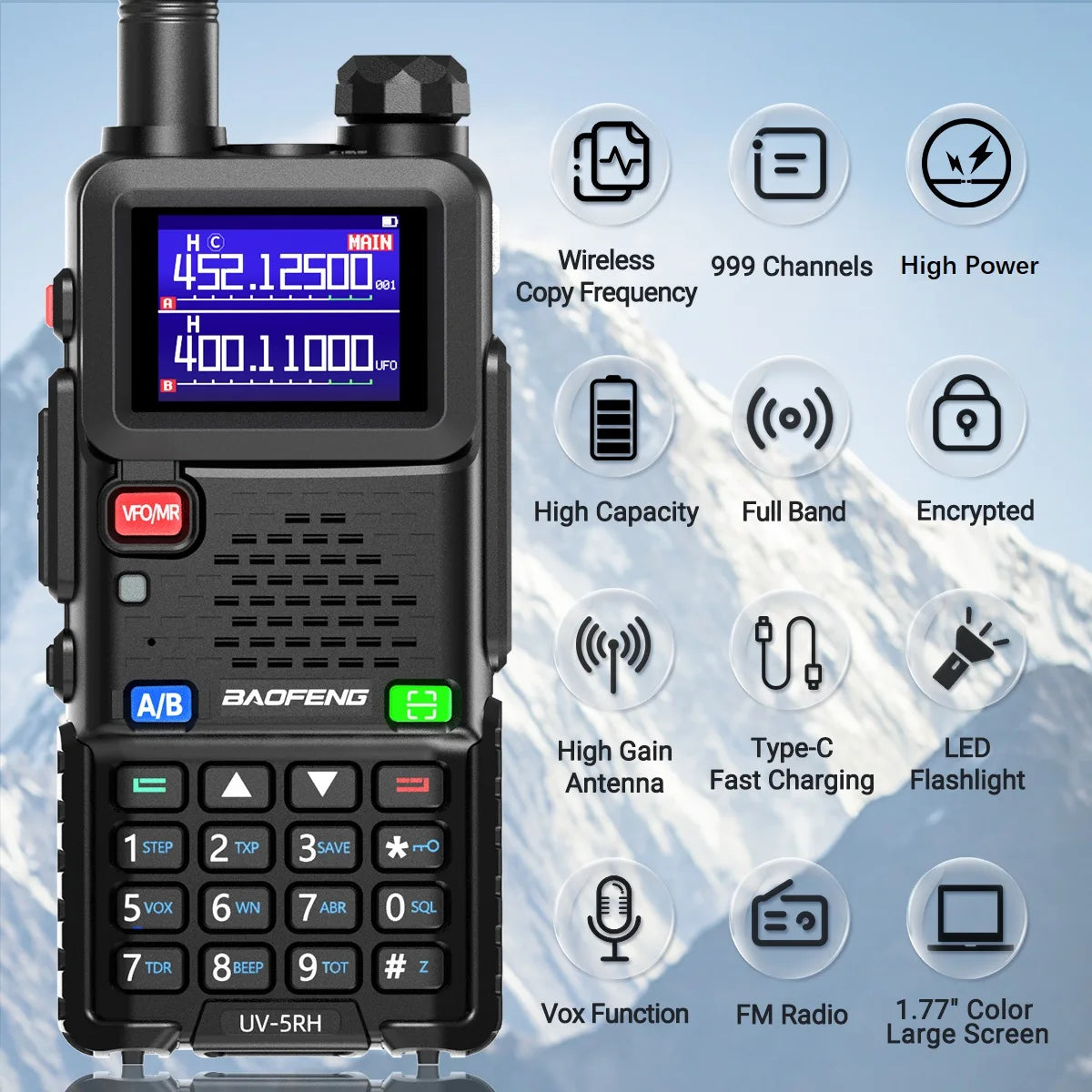

★【Upgraded UV-5R】

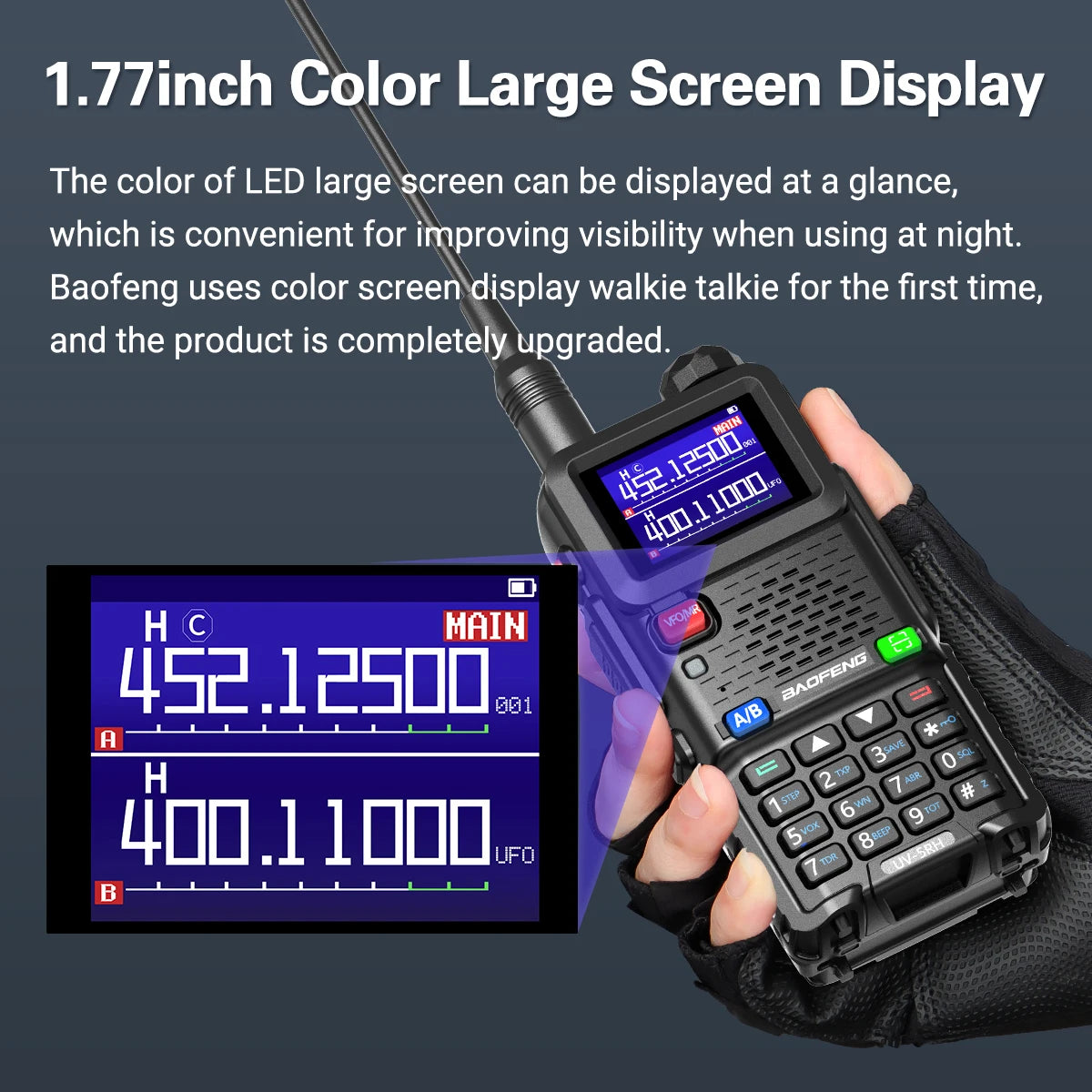

UV-5RH is a professional ham radio, True 15W high power, High/Mid/Low Tri-Power Switchover. Up to 999channels.1.77 inch color screen.

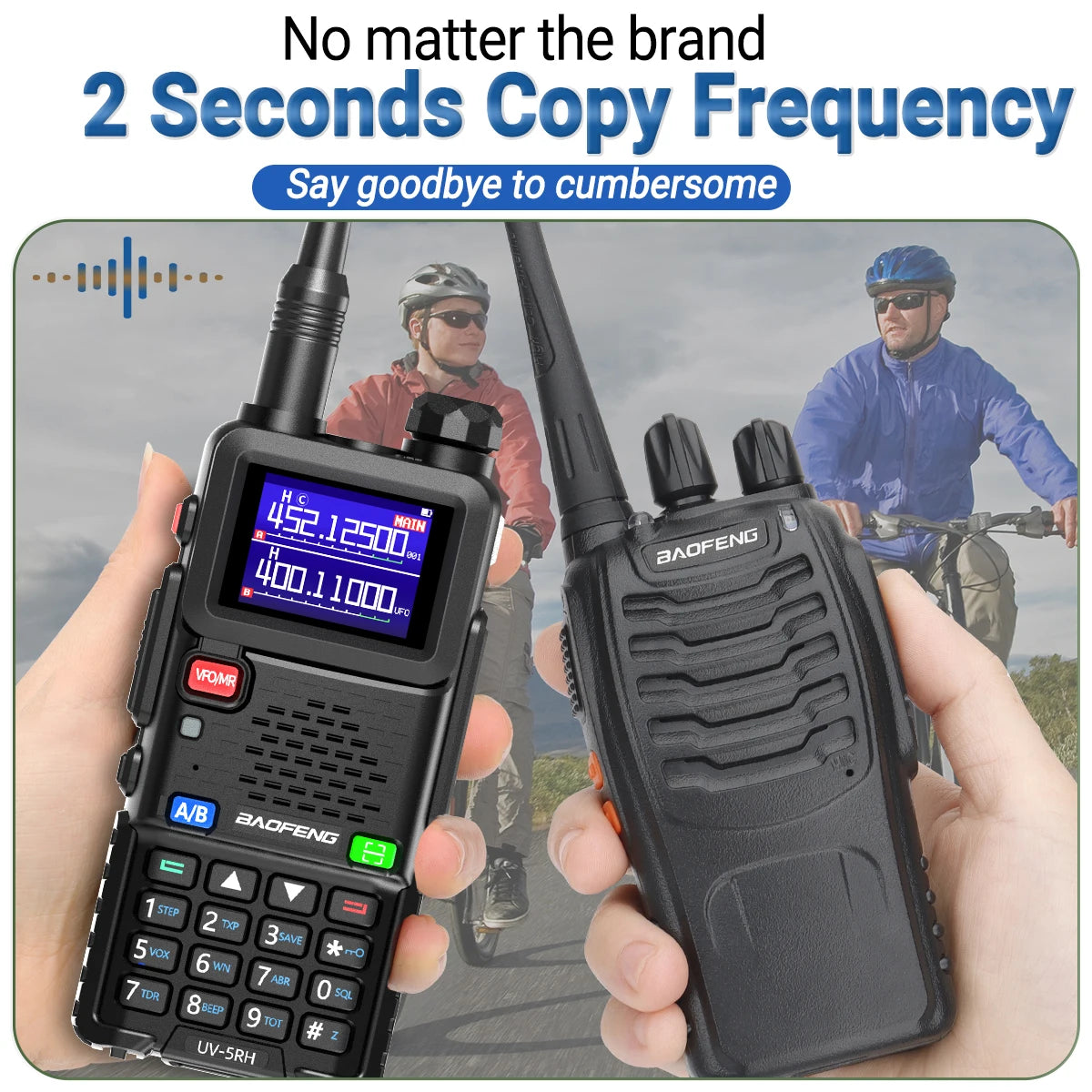

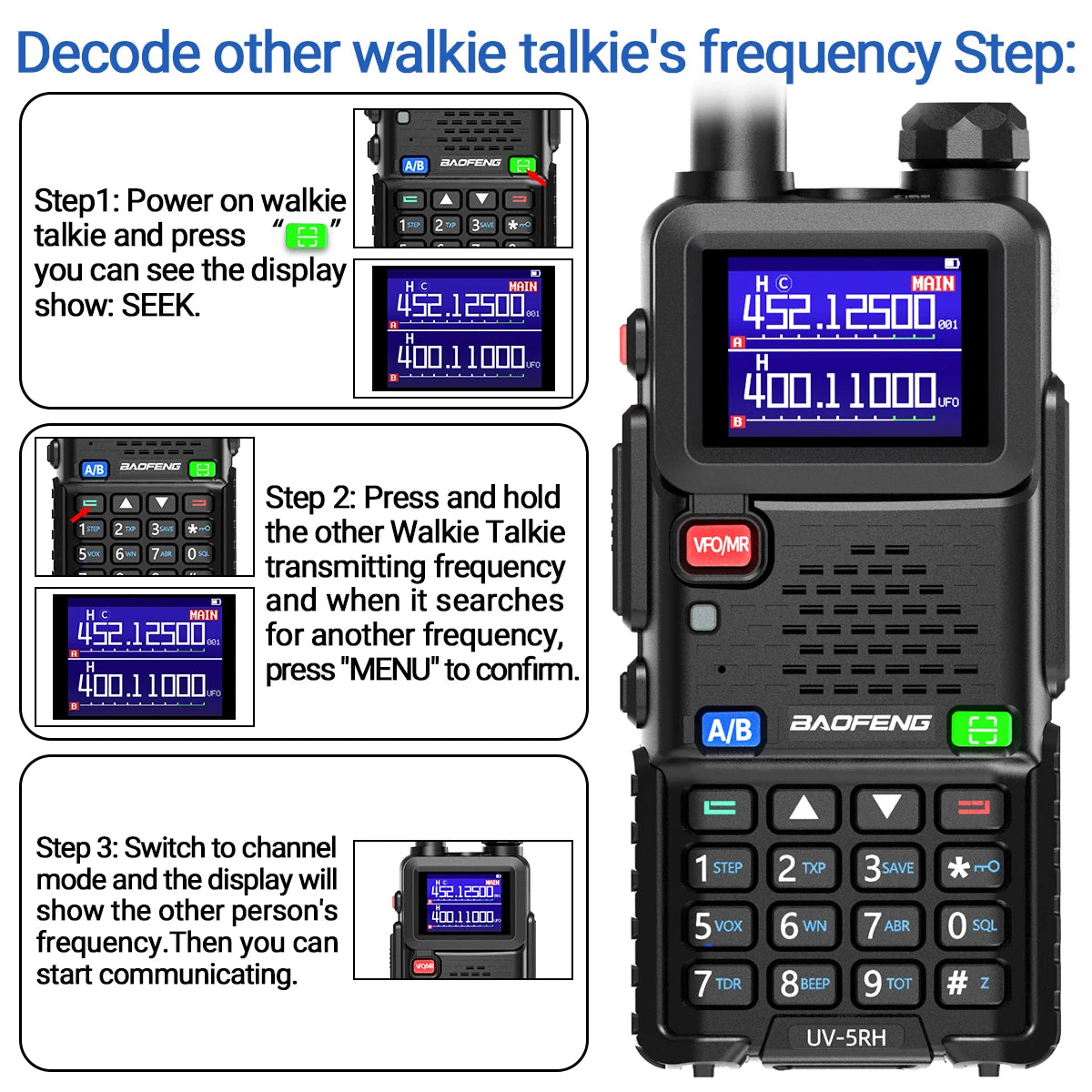

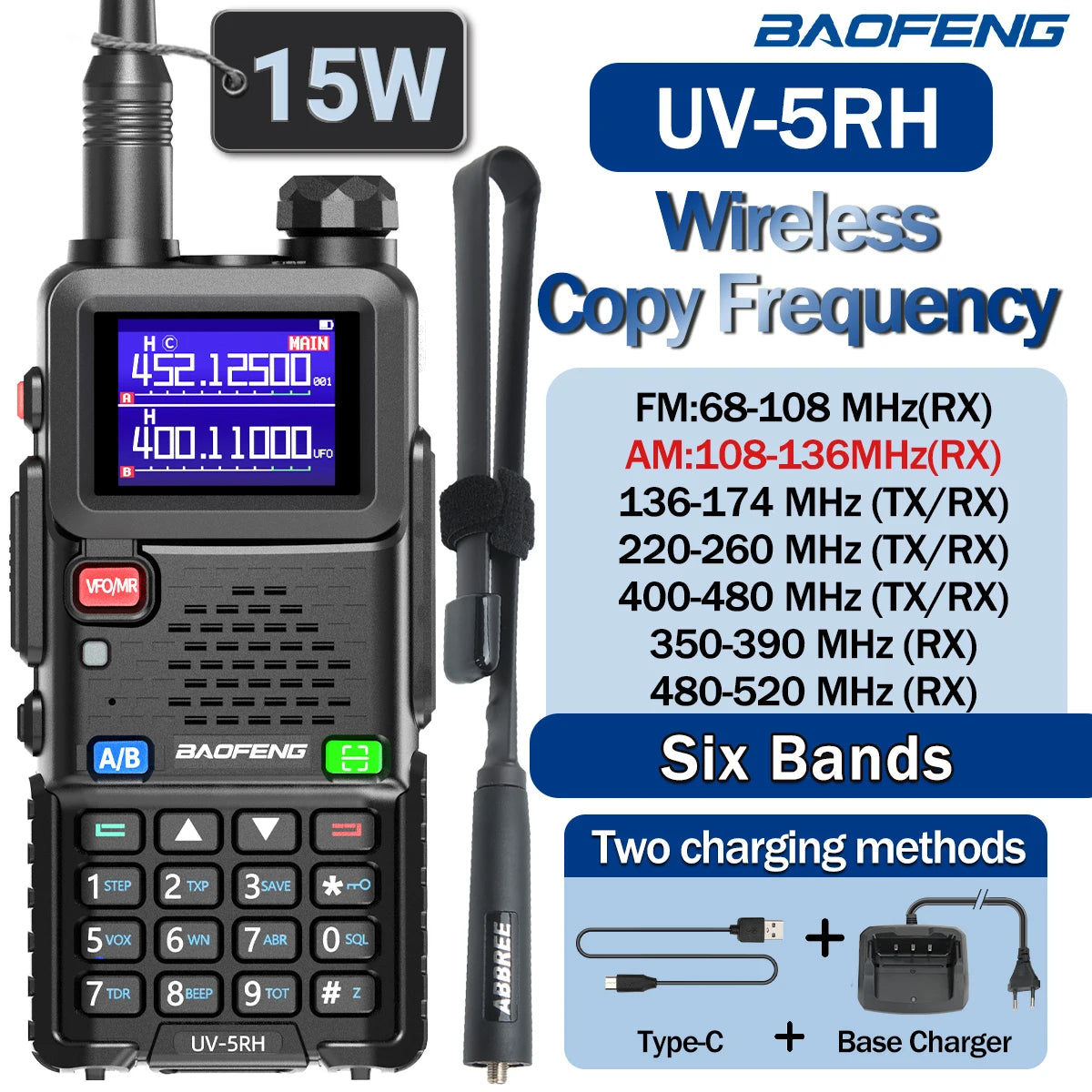

★【Wireless Copy Frequency 】
Press the EXIT button to enter the“FQSCAN”interface. Press EXIT again and the UV-5RH will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.

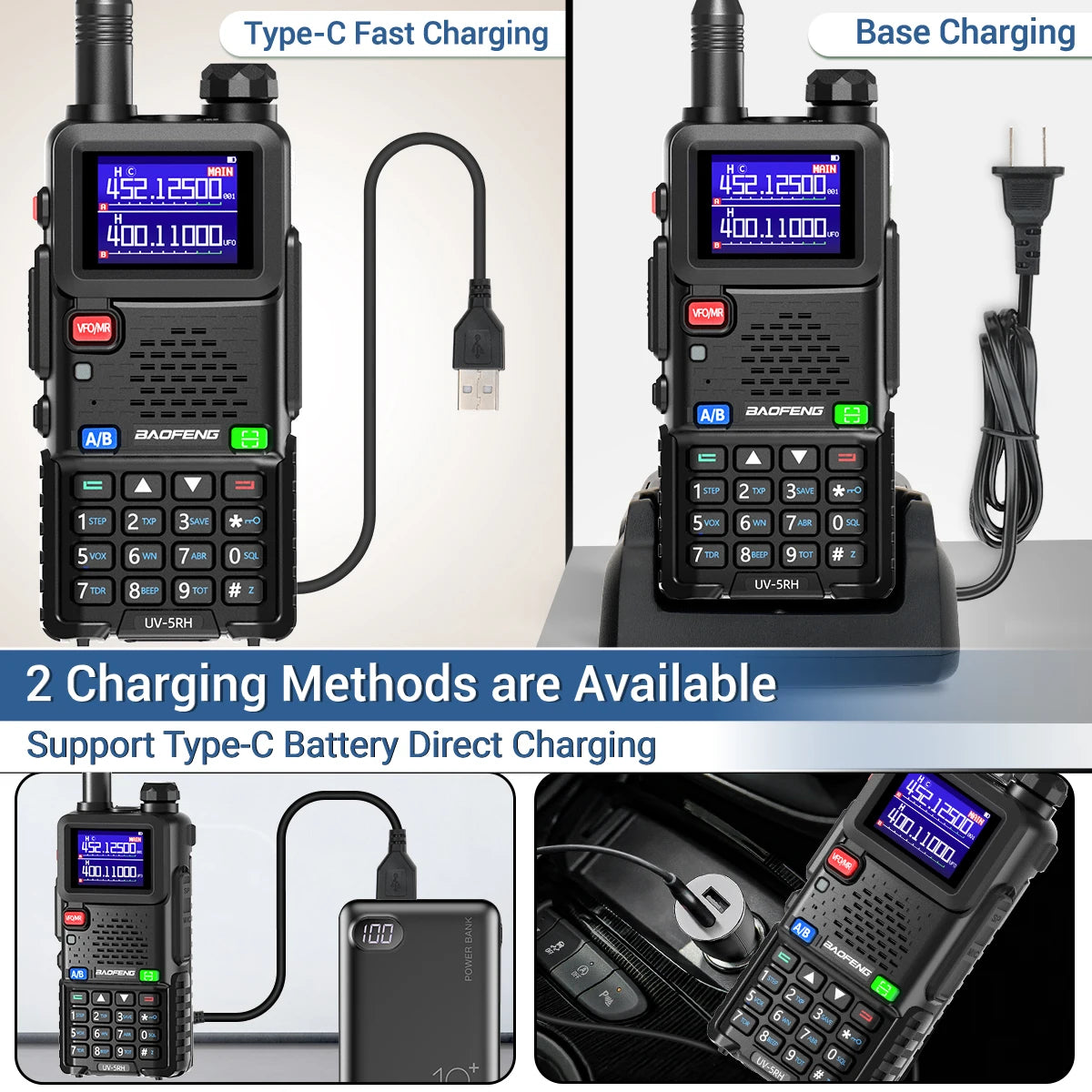

★ 【Type-C USB Charging 】
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.

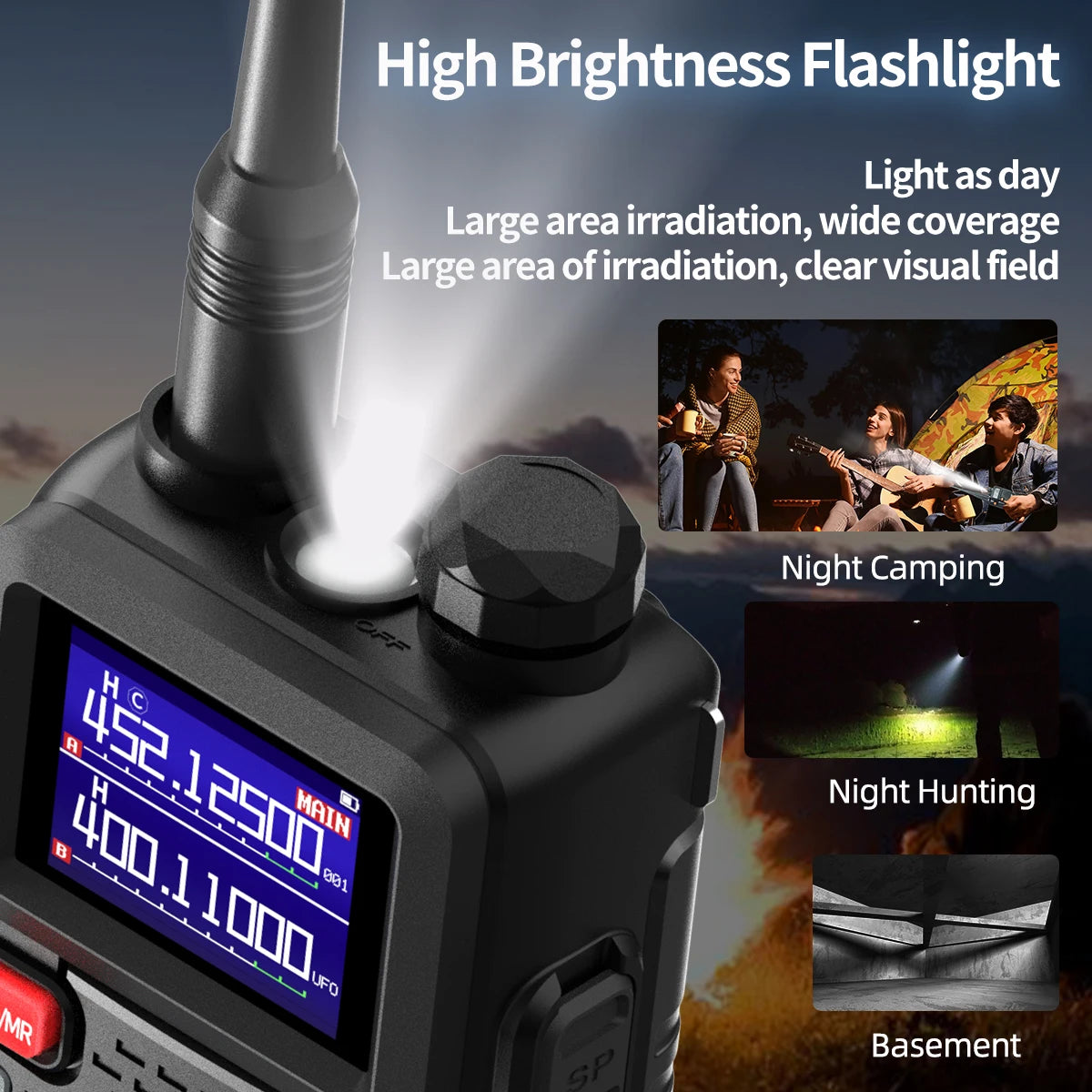

★【LED Flashlight】
LED spotlight, life emergency helper, Powerful, it can also change into a flashlight in seconds, lighting up your dark night anytime, anywhere.
★【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.
AllofouritemsareBrandNew |
Model |
BaofengUV-5RH |
Dual Band/Dual Display/Dual Standby |
A/Bbandindependentoperation(UVUUVV) |
128groupschannelsstorage |
Shortcutmenuoperationmode |
VFO&Memorychannelsscan |
EmergencyAlarm |
Time-outTimer(TOT) |
0~9gradesVOXselectable |
PTT&ANIID |
FMradioand25stationsstorage |
Voicecompanding |
50CTCSS/104DCS |
High/LowTXpowerselectable |
Busychannellock-out(BCLO) |
DTMFfunction |
OFFSETfunction |
Wide/NarrowBand(25kHz/12.5kHz) |
Yes |
|
VOXfunction |
Yes |
|
Busylockoutfunction |
Yes |
|
Scanningfunction |
Yes |
|
Monitorfunction |
Yes |
|
Time-outTimer(TOT)function |
Yes |
|
LCD display |
Yes |
|
Dual display |
Yes |
|
Batteryvoltagedisplayfunction |
Yes |
|
Channelnamedisplayandeditingfunctions |
Yes |
|
Signalstrengthindicator |
Yes |
|
Keypadlockfunction |
Yes |
|
Built-inLedtorch |
Yes |
|

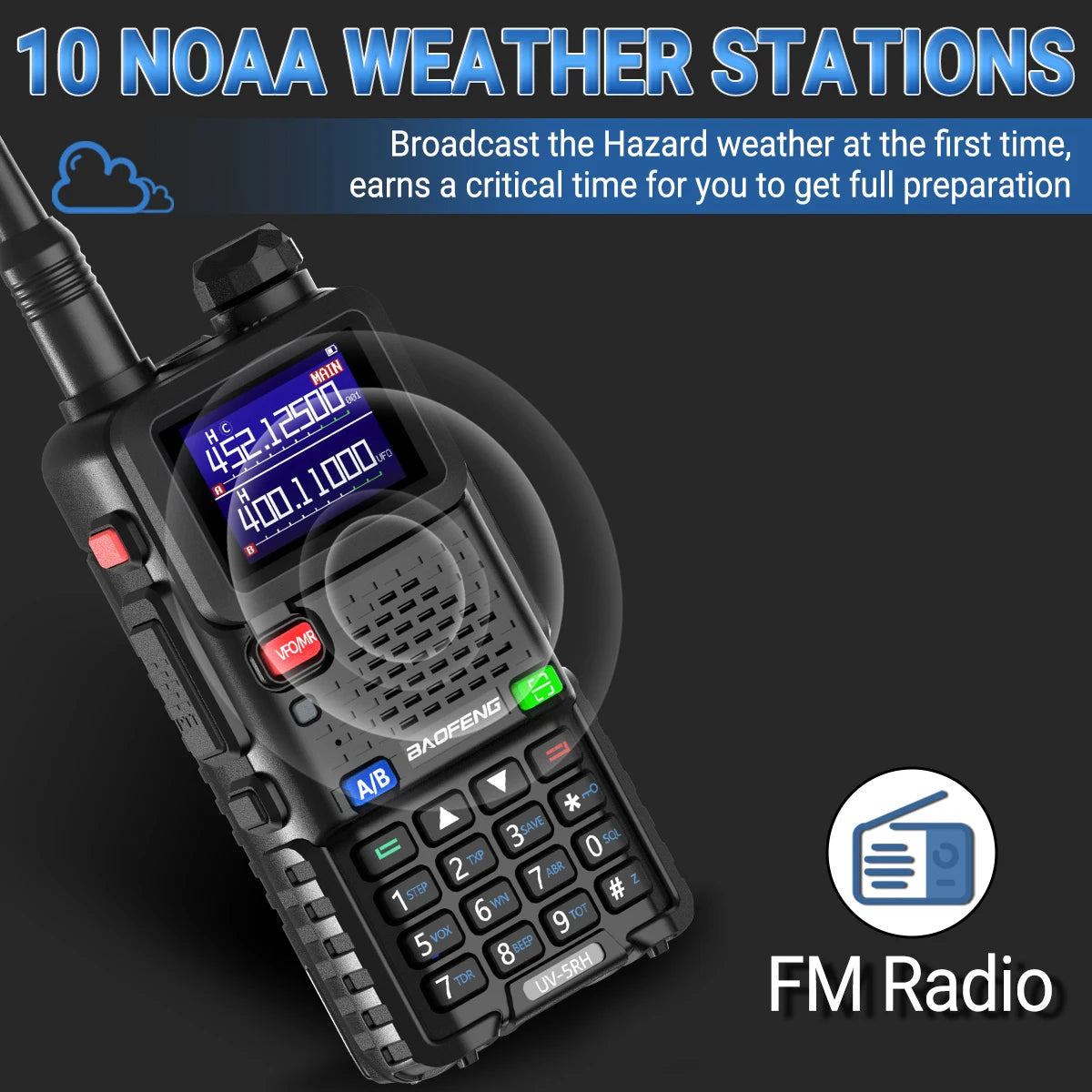

FMradio |
Yes |
|
Wireclonefunction |
Yes |
|
Emergencyalarmfunction |
Yes |
|
Lowbatteryalarm |
Yes |
|
Powersavingfunction |
Yes |
|
High/MID/LowTXpowerselectable |
Yes |
|
ROGERSET |
YesYes |
|
ChineseandEnglishvoiceprompt |
Yes |
|
PCsoftwareprogrammable |
Yes |
|
RatedVoltage |
7.4VDC±10% |
Outputpower |
<=5W |
Batterytype |
Li-ionbattery |
Batterycapacity |
2500mAh |
Workingtemperature |
-20~+50°C |
AntennaImpedance |
50ohm |
Weight |
300g |
Dimension(LXWXH) |
58X40X130mm(NotAntenna) |
Frequencystability |
±2.5ppm |
Carierwavetolerance |
5ppm |
Modulation |
16K Ø F3E/11K Ø F3E |
Maxfrequencydeviation |
<5kHz(Wide)
<2.5kHz(Narrow) |
Modulationcharacter |
6dBperfoldfrequencypatch |
Emissioncurrent |
<1.6A(5W) |
CTCSS/DCS |
0.5±0.1kHz(Wide)
0.3±0.1kHz(Narrow) |
Sensitivity |
<0.16µV(12dBSINAD) |
Silentsensitivity |
<0.2µV |
IntermediationDistortion |
<10% |
Intermodulation |
8-12mv |
Adjacentchannelselectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |

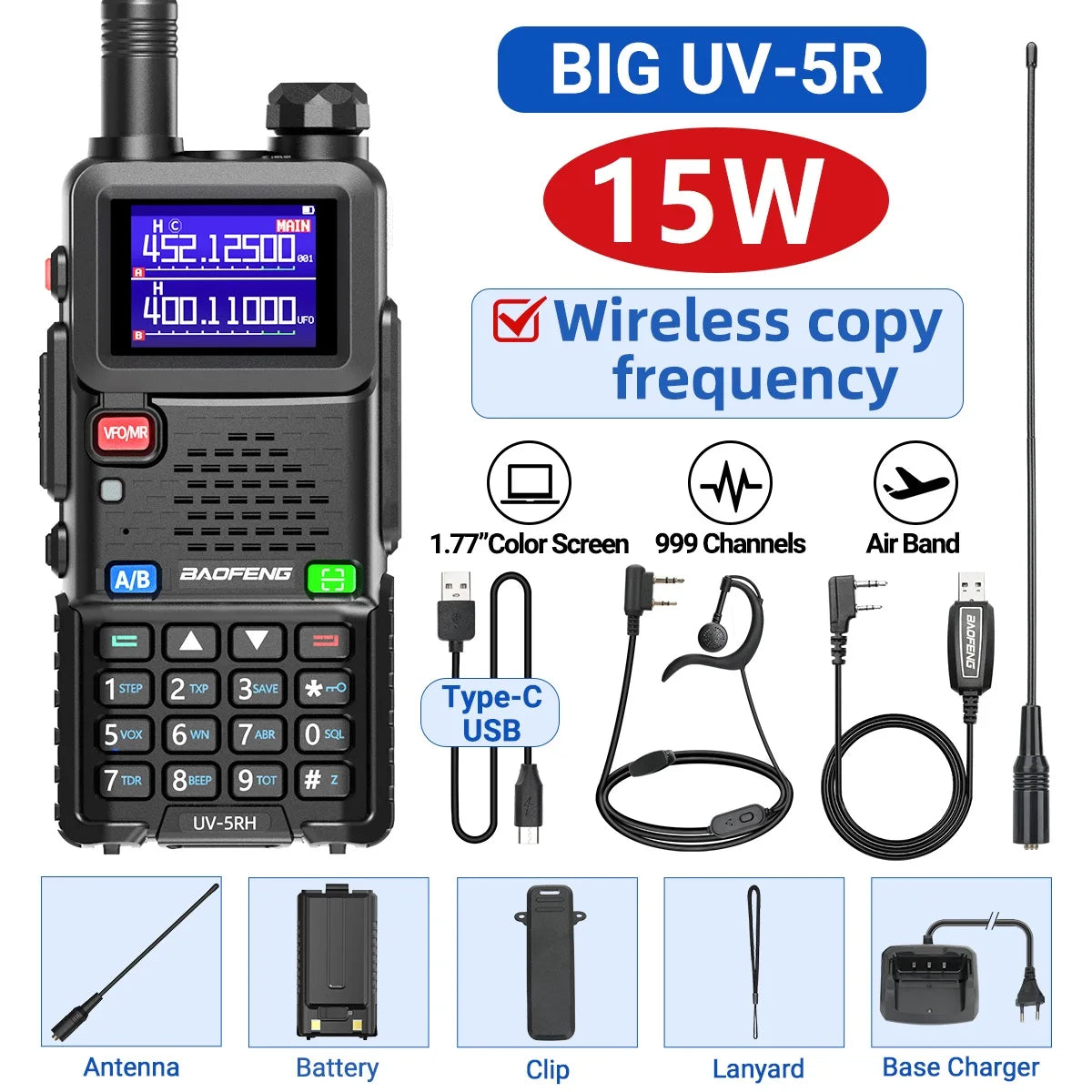

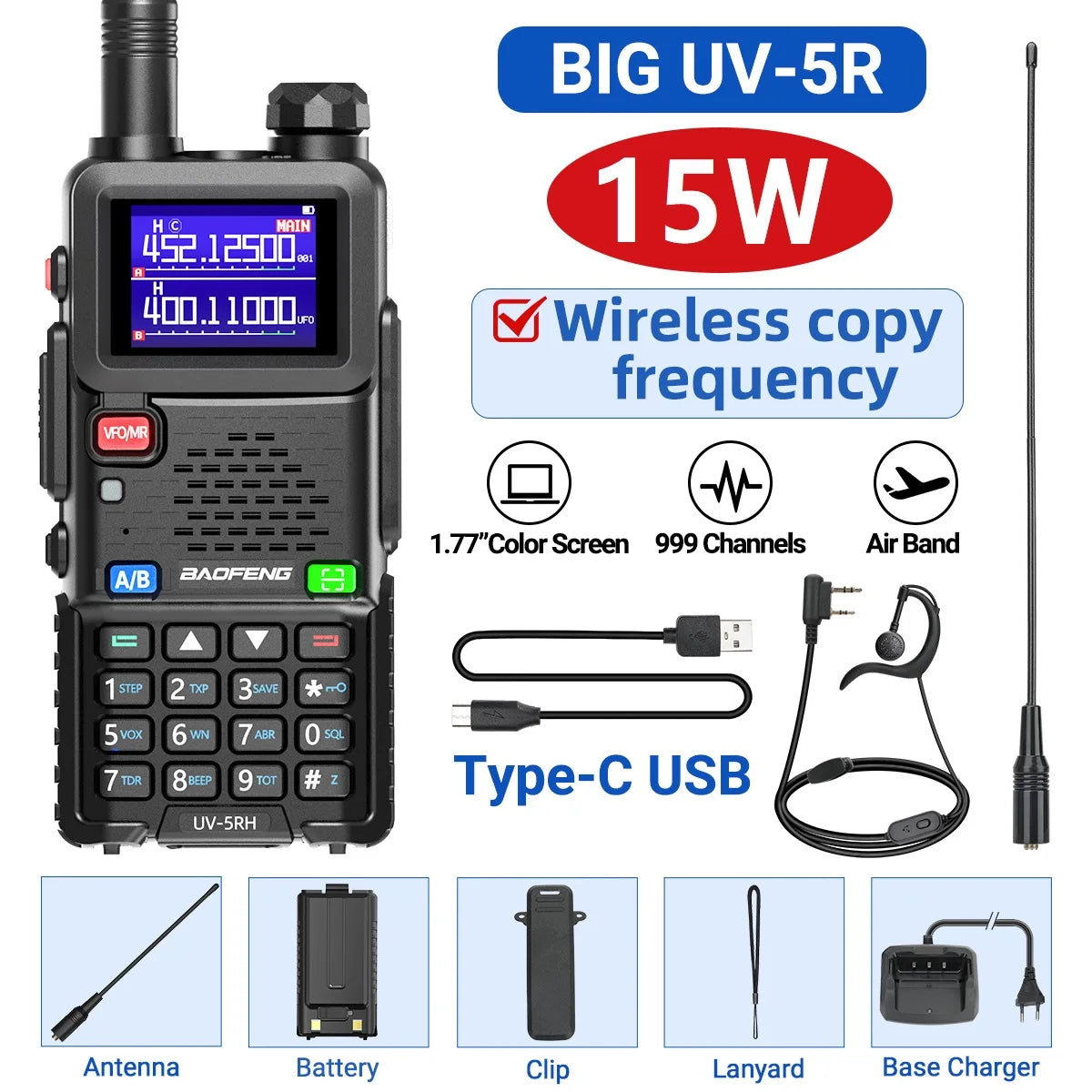

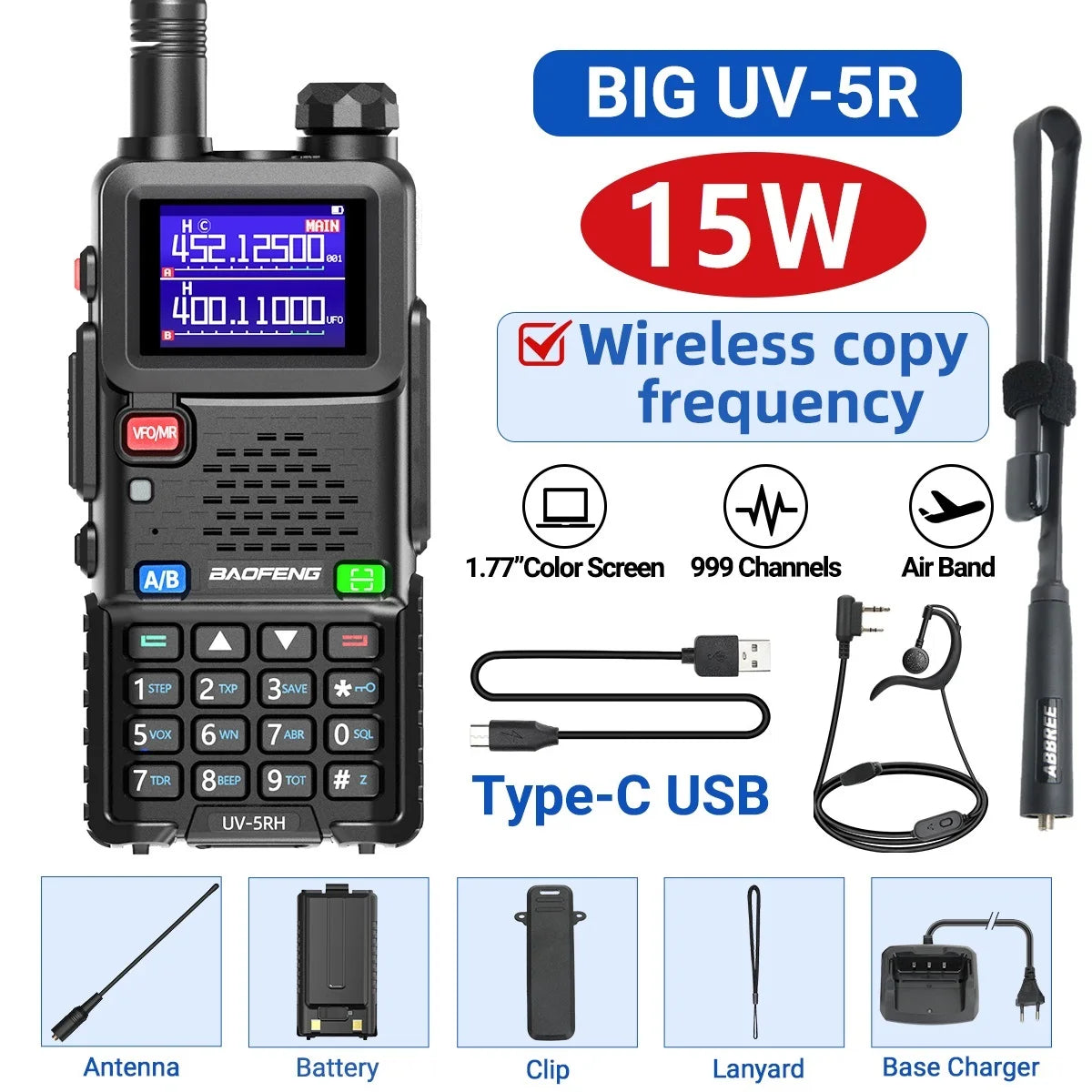

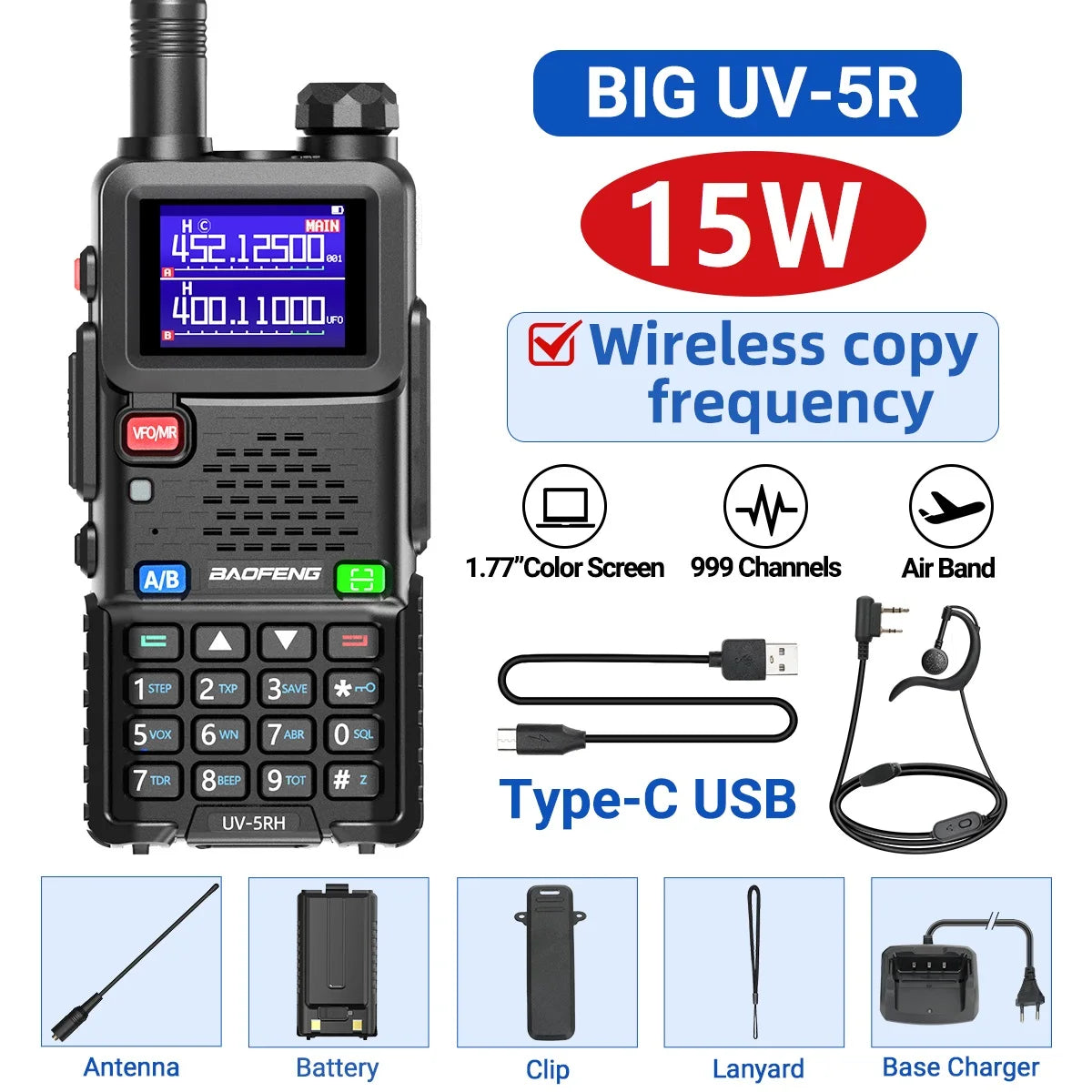

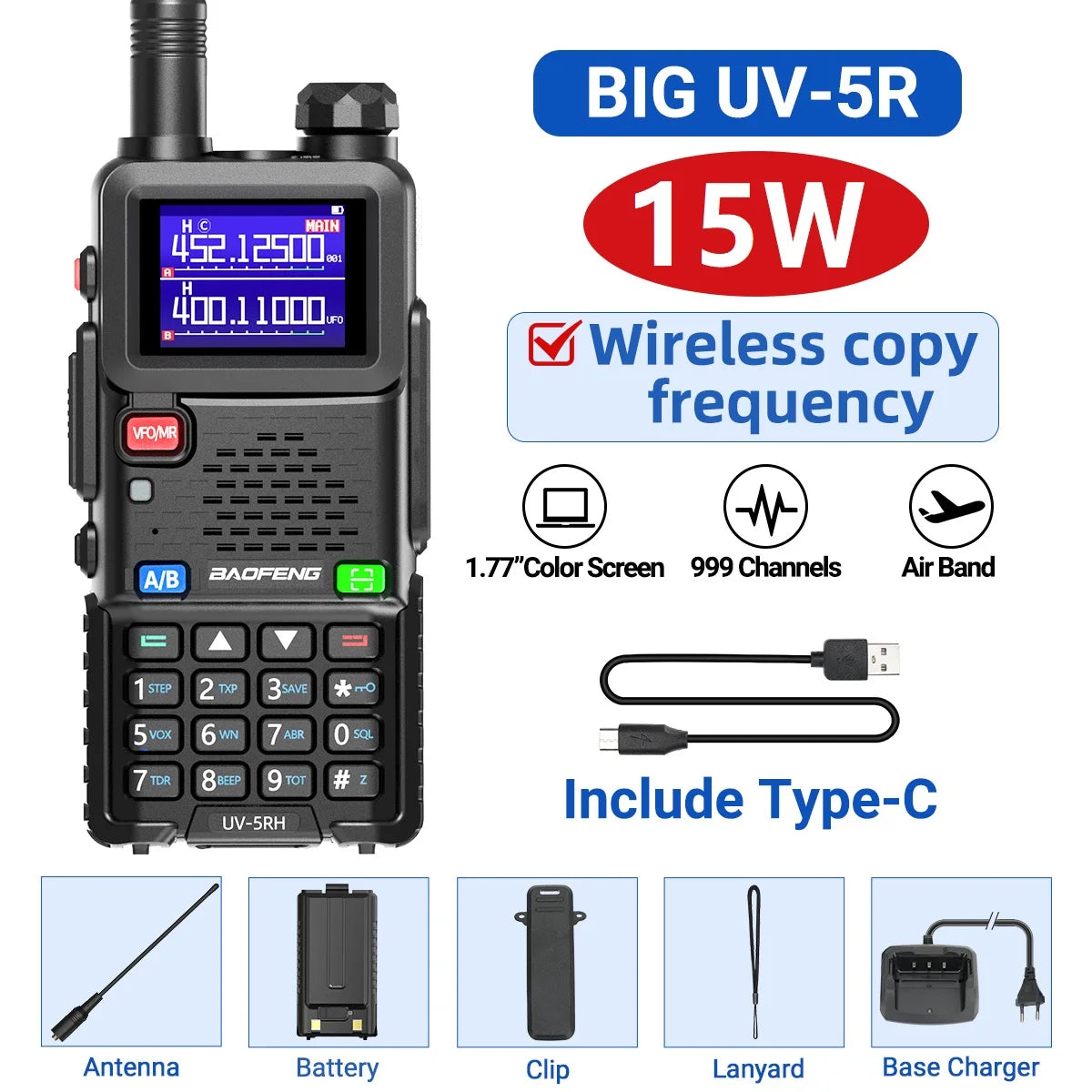

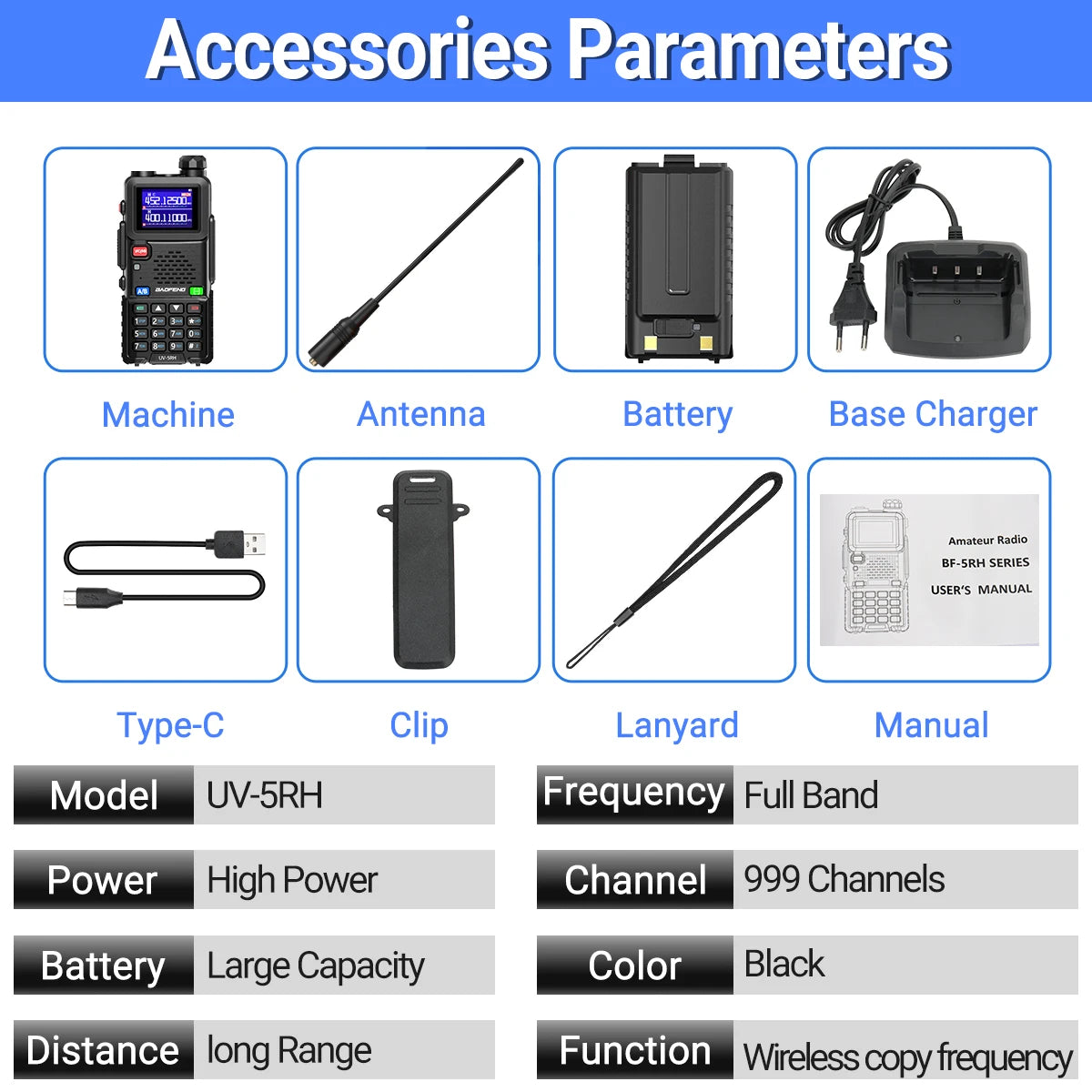

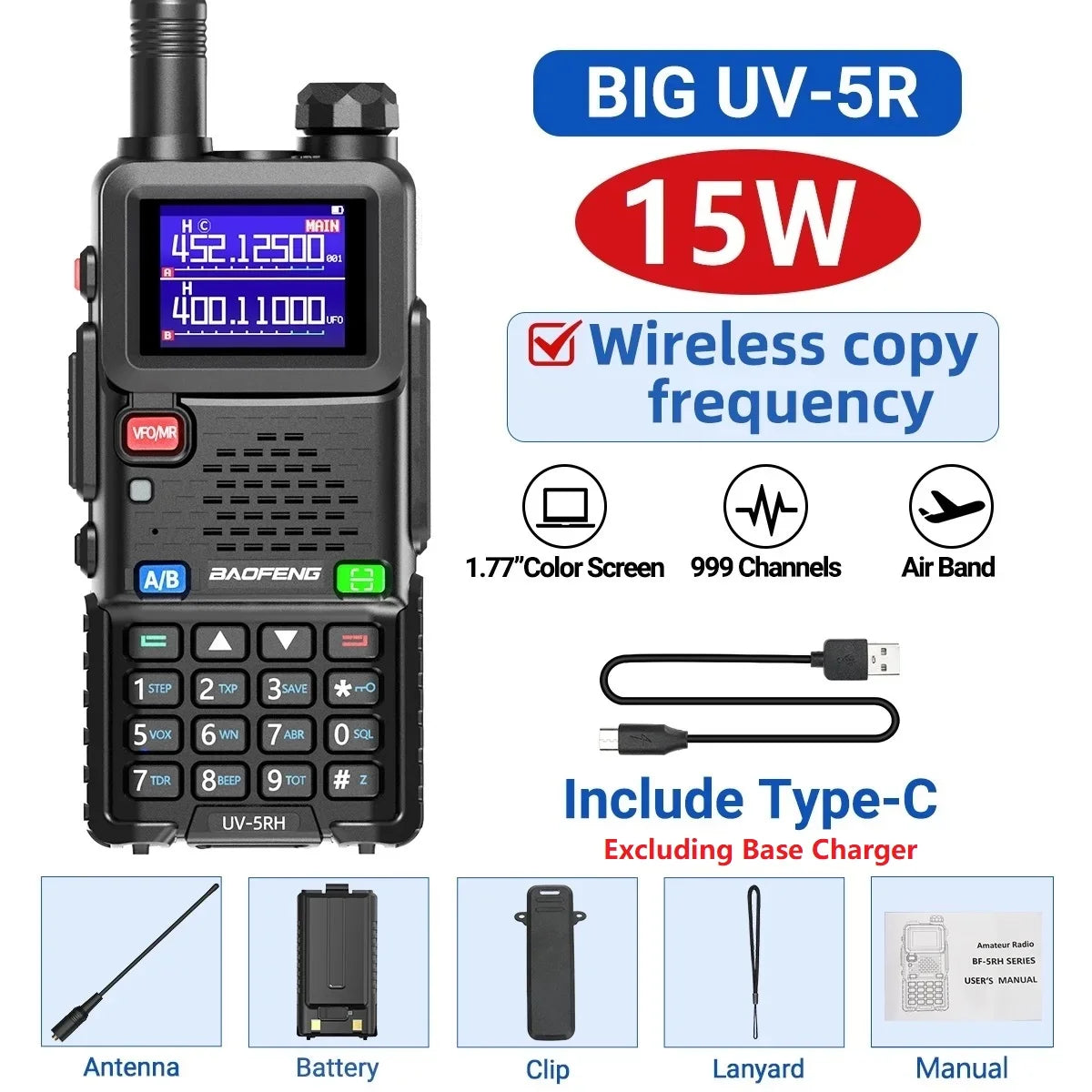

Package Include:
1X Portable radio
1X Antenna
1 X USB
1X Li-ion battery pac
1X Beltclip
1X Thesling
1X User'smanual
